Product Name:MS2600 Electronic dividing saw

Category:MS series

Abstract:
  • Product details
  • Function
  • Accessories
  • Other
Product Details
   MS series automatic acrylic electronic cutting saw is an entry-level product in Mingte electronic cutting saw. It is mainly used for the cutting of acrylic and plastic materials. It is suitable for the production of LED panel light, acrylic craft products and plastic processing. It has the characteristics of fast cutting speed, high precision, good safety performance and environmental protection. Seamless welding of the whole steel structure, 800 ° high temperature heat treatment, to ensure the stability of the bed is not deformed; large CNC milling machine processing, to ensure the accuracy of the assembly surface, improve the stability of the machine operation and the smoothness and precision of the cutting.
Machine configuration list

Model

MS 2 600

MS3200

total weight

5000KG

5500KG

working desk size

2600MM

3200MM

Dimensions

5100×5300×1700MM

5800×6000×1700MM

Work pressure

≥6KG/CM2

Operating Voltage

380 volts (three-phase four-wire)

control method

PLC Japan Mitsubishi

Human machine interface

Touch frequency

Main saw motor power

1 5 KW

Slot saw motor power

1.5KW

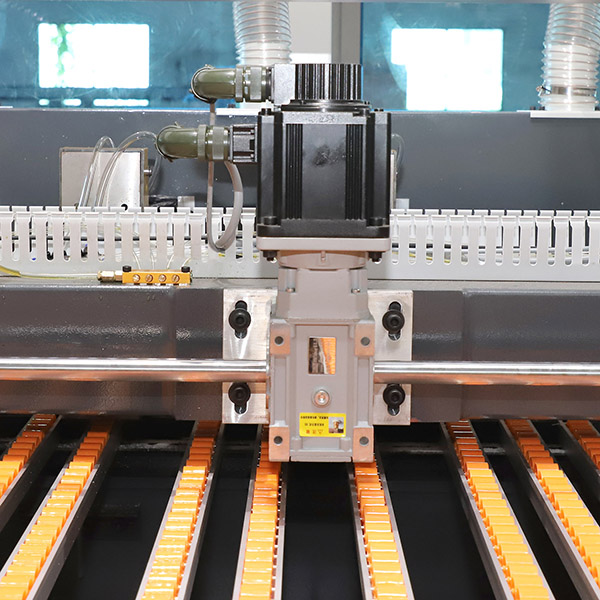

Feed servo motor

1.5KW Delta

Cutting servo motor

1.5KW Delta

Maximum processing thickness

≤65mm (acrylic)

Effective processing length

2600MM

3200mm

Effective processing depth

2600MM

3200mm

Cutting speed

0-12m/min (stepless speed regulation)

Cutting straight line accuracy

0.2mm/3200mm

Feeding accuracy

±0.15MM

Diagonal accuracy

1200/2400<0.7MM

Feeding speed

20m/min

Cutting drive mode and feeding drive mode

Rack and pinion

Feeding structure

Pneumatic float

Air floating table motor power

1 set *3.7KW

Targeting

Pulse servo position control



Main saw specification

Outer diameter

Φ305MM-φ355 MM

the inside diameter

Φ30MM

thickness

3MM



Slot saw specifications

Outer diameter

Φ180MM

the inside diameter

Φ30MM

thickness

2.9MM-4 MM

Main saw speed

3950~4500 rpm (inverter)

Slot saw speed

5400 rpm

Total power

21KW
