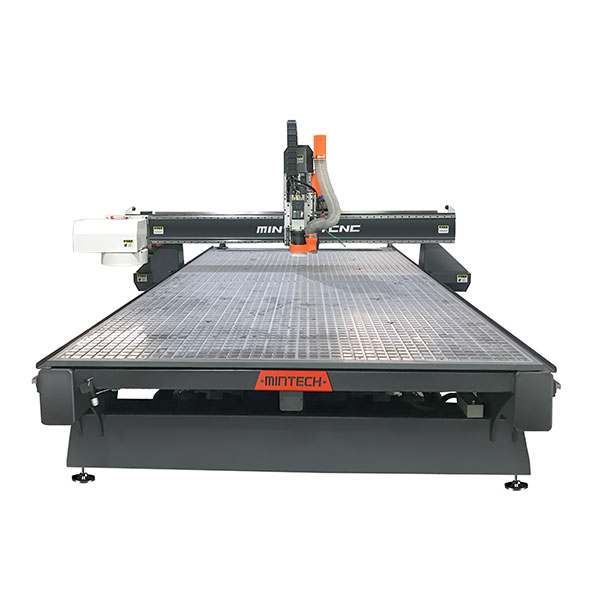

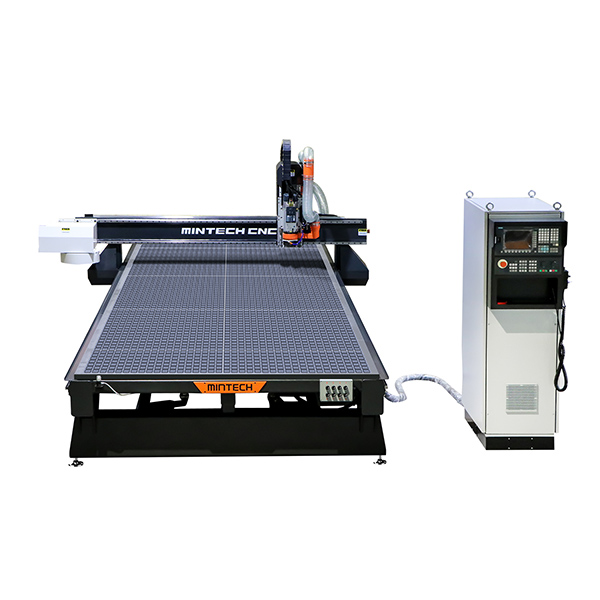

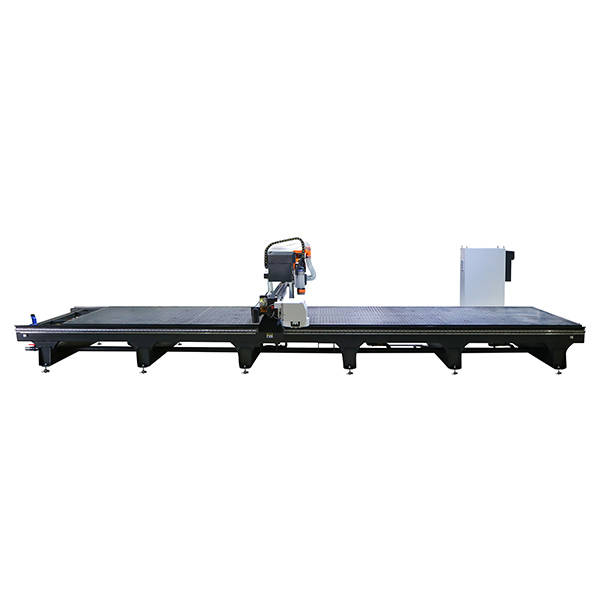

SR2080

CNC Router

Products

A one-stop service for acrylic, acrylic processing become more simple.

< >

Product Name： SR2080

Category：SR series

Abstract：

Product details
Function
Accessories
Other

Mechanical specifications

　　Model: SR2080
　　Working voltage: AC380V/50HZ/3PH
　　Machinable size: 2000mm*8000mm*100mm
　　Beam to work surface distance: 200mm
　　Z-axis travel: 450mm
　　Maximum machining speed: 20m/min (maximum cutting requires tool fit)
　　Maximum air movement Speed: 40m/min
　　Repeat positioning accuracy: +/-0.05mm
　　Drive mode: X, Y axis adopts high-precision helical gear rack drive, Z-axis adopts high-precision ball screw drive.

Performance characteristics

　　The SR series sheet metal processing center adopts the gantry structure, the fixed surface of the table and the moving mode of the beam. The optimized design of the gantry and the beam and the reliable cooperation with the worktable form a frame structure with good rigidity and reliability, and the heavy-duty welded structure. , finite element design calculations to ensure optimum strength and rigidity.
　　SR series gantry machining center, more than 15 years of industry application, industry-leading design, excellent performance and reliability.
　　Using high-quality components to use the machine tool can maintain high precision for a long time.
　　The machine components are FEM (Finite Element Analysis) and are uniquely designed to reduce vibration.
　　Safety Assurance
　　- The machine tool is designed according to the American AMT mechanical manufacturing standards.
　　-- Electrical standards are designed using EMC electrical standards.
　　-- All moving parts have safe and reliable protection.
　　-- Operational status monitoring.
　　--X, Y and Z three-axis drive systems are equipped with a variety of safety protection controls, such as electrical control limits, software limits and mechanical limits to ensure the safety of machine work.

Machine configuration list

NO	content		specification	Remarks
1	Processing range	X-axis machining range	8000mm	customizable
		Y-axis machining range	2000mm	customizable
		Z-axis machining range	100mm	customizable

2	Machine parameter index
		X, Y, Z repeat positioning accuracy	0.05mm
		Maximum displacement speed	40 m / min
		Maximum processing speed	20 m / min
		Total machine weight	About 3200KG
		Machine operating voltage	AC380V/50HZ/3PH
3	Workbench	Clamping method	Vacuum adsorption work surface
3	Workbench	Workbench load	500KG
4
5	CNC system	Siemens control system
5	CNC system	Siemens control system
6	Drive power (AC servo)	X-axis drive motor	1.3KW
		Y-axis drive motor	1.3KW
		Z-axis drive motor	1.3KW
		Voltage	AC380 / 3PH
7	Electric spindle (frequency conversion)	Spindle	Italian HSD air-cooled
		Spindle speed	4000-24000RPM
		Spindle power	9.6KW
		Spindle taper	ISO30
		Spindle dynamic balance level	G2.5
		Frequency converter	VFD
8	guide	X rail guide	Square rail
		Y-axis guide	Square rail
		Z-axis guide	Square rail
9	transmission	X-axis drive	High precision rack and pinion
		Y-axis drive	High precision rack and pinion
		Z-axis drive	Ball screw rod
