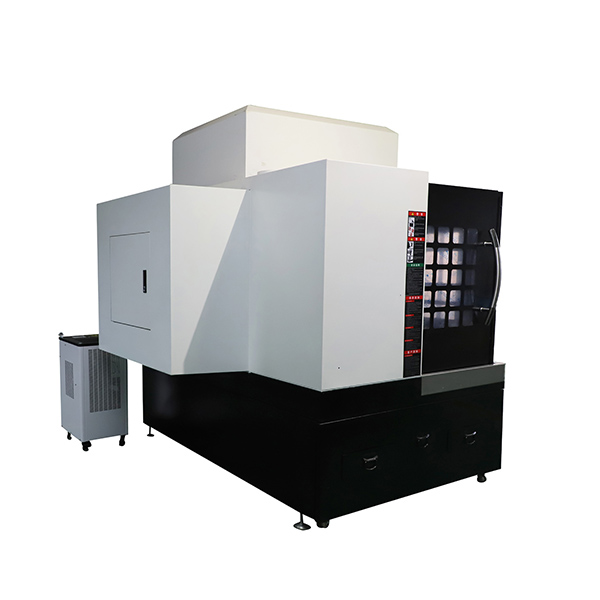

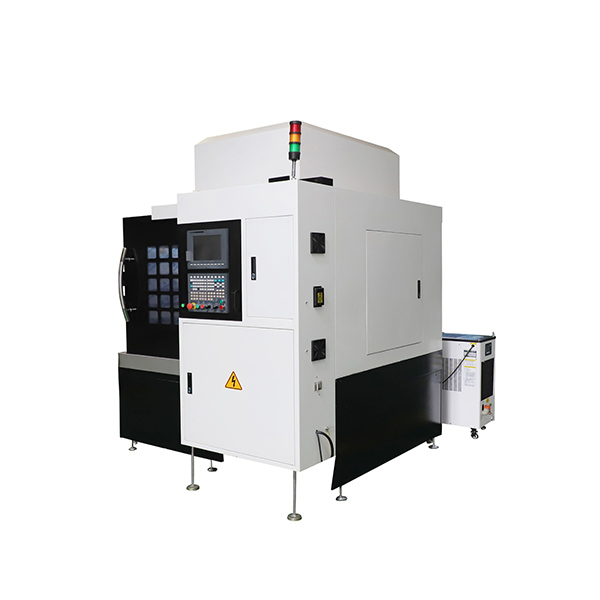

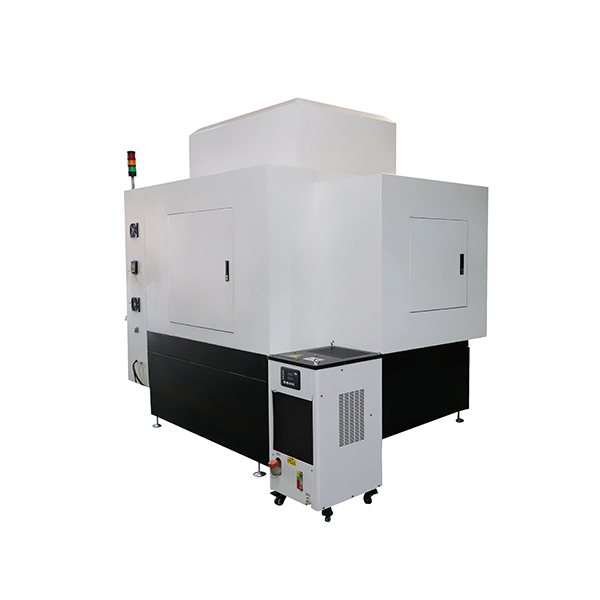

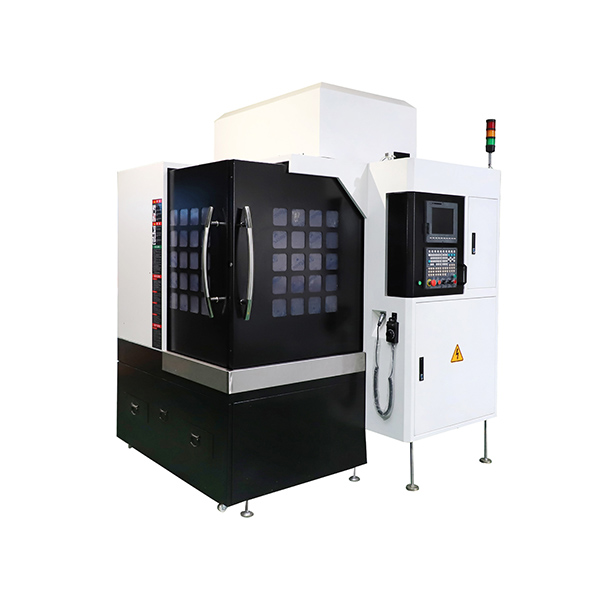

Product Name: MD6050

Category:MD series

Abstract:
  • Product details
  • Function
  • Accessories
  • Other
Performance characteristics
  The MD650 machining center adopts cast iron structure, table movement and beam fixed transmission mode. It adopts optimized design of gantry and beam and reliably cooperates with the worktable to form a frame structure with good rigidity and reliability. The finite element design calculation ensures the most Good strength and rigidity. In response to the high-quality processing requirements of acrylic, the mirror effect is directly achieved, the product quality is improved, the labor cost is reduced, and the production efficiency is improved.
  MD650 CNC machining center, more than 15 years of industry application, industry-leading design, excellent performance and reliability.
  Using high-quality components to use the machine tool can maintain high precision for a long time.
  The machine components are FEM (Finite Element Analysis) and are uniquely designed to reduce vibration.
  Safety Assurance
  - The machine tool is designed according to the American AMT mechanical manufacturing standards.
  -- Electrical standards are designed using EMC electrical standards.
  -- All moving parts have safe and reliable protection.
  -- Operational status monitoring.
  --X, Y and Z three-axis drive systems are equipped with a variety of safety protection controls, such as electrical control limits, software limits and mechanical limits to ensure the safety of machine work.
Machine configuration list

NO .

Project

Content

Regulation lattice  Model

Preparation Note

1

Processing range

X-axis machining range

600mm



Y-axis machining range

500mm



Z-axis machining range

250mm



2

Machine parameter index

X, Y, Z axis motion positioning accuracy

Оmm

The above position parameters are referenced to the international ISO230-2 and are calibrated using a RENISHAW laser interferometer. Note (1)

X, Y, Z repeat positioning accuracy

0.005mm



Maximum displacement speed

10 m / min



Maximum processing speed

6 m / min



Total machine weight

About 4500KG



Machine power supply requirements

AC380V/50HZ/3PH 30A



Machine tool gas supply requirements

0.52MPa



3

Machine tool main purchase

cast iron

Precision Machining

Aging annealing heat treatment

4

Workbench

Cast iron workbench

T-slot 600mm × 500mm



Workbench load

400KG



5

CNC system

Taiwan's new generation

21MA bus (E80)



6

Tool change system

Disc type BT30

12 knife position



7

Tool setting system

Tool set

automatic



8

Lubrication system

Fuel supply pump

automatic

Use No. 20 lubricant

9

motor

X, Y, Z axis

850W AC servo

Yaskawa, Japan

10

Electric spindle

Spindle cooling

Oil cooler



Spindle speed

4000-24000RPM



Spindle power

7.5 KW



Spindle taper

BT30



Spindle dynamic balance level

G2.5



Frequency converter

7.5KW

Sifang or Delta

11

guide

X, Y, Z rail guide

Square rail (D30mm)

Taiwan Yintai

12

transmission

X, Y, Z axis drive

Ball screw (Ø32mm)

Taiwan silver

12

Arbor

BT30

Pull studs and shank

5 sets included

13

Tsui Tsui

ER32

Ø3.175, Ø4, Ø6, Ø8, Ø10

One each



Note(1):

Positioning accuracy detection method: The measurement data is sorted by mathematical statistics. That is, any number of positioning points (generally 5 to 15) are selected along a certain measurement axis parallel to the coordinate axis, and then multiple positioning (usually 5 to 13 times) is repeated for each positioning point. The locating point can be approached in one direction, or it can be approached from two directions, and then the measurement data is statistically processed to obtain an arithmetic mean value. Further, the average value deviation, the standard deviation, and the dispersion degree were determined. The dispersion represents the repeating positioning accuracy, which together with the average deviation constitutes the positioning accuracy, and the sum of the two is the maximum positioning deviation that can be achieved when positioning between any two points.
