Product Name:R3 CNC engraving machine

Category:R series

Abstract:
  • Product details
  • Function
  • Accessories
  • Other
Mechanical specifications
  Model: R3
  Working voltage: AC380V / 50HZ / 3PH
  Machinable size: 1300mm * 2500mm * 60mm
  distance from beam to table surface: 150mm
  Z-axis travel: 160mm
  Maximum processing speed: 10m/min (tool coordination is required for maximum cutting)
  Maximum idle movement Speed: 15m/min
  Repeatable positioning accuracy: +/-0.05mm
  Drive mode: X and Y axis are driven by high-precision helical gear rack, and Z-axis is driven by high-precision ball screw.
Control System
  The control system adopts Xing multidimensional handle control system.
  Tool compensation function. Supports tool radius compensation and length compensation through manual and automatic two modes of measurement. The easy-to-understand human-computer interface allows users to reduce the conversion of tool compensation values. For users who use tool length compensation, many unnecessary conversions are avoided.
  Program simulation and real-time simulation. Provide powerful program simulation function, which can fully display the process of blank cutting. The program simulation function also supports the switch between the simulation interface and the processing interface at any time, which is convenient for users to monitor the processing program in real time and make processing more convenient.

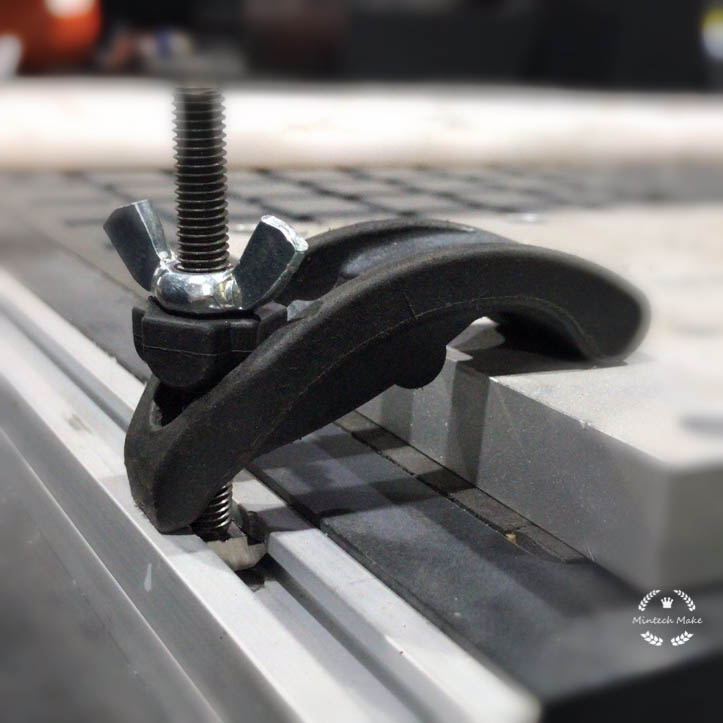

  One-time clamping to complete functions such as milling, drilling, chamfering, etc. Precision machining
  uses high-precision ball screws, guide rails, and rack and pinion to ensure the stability of the machine.

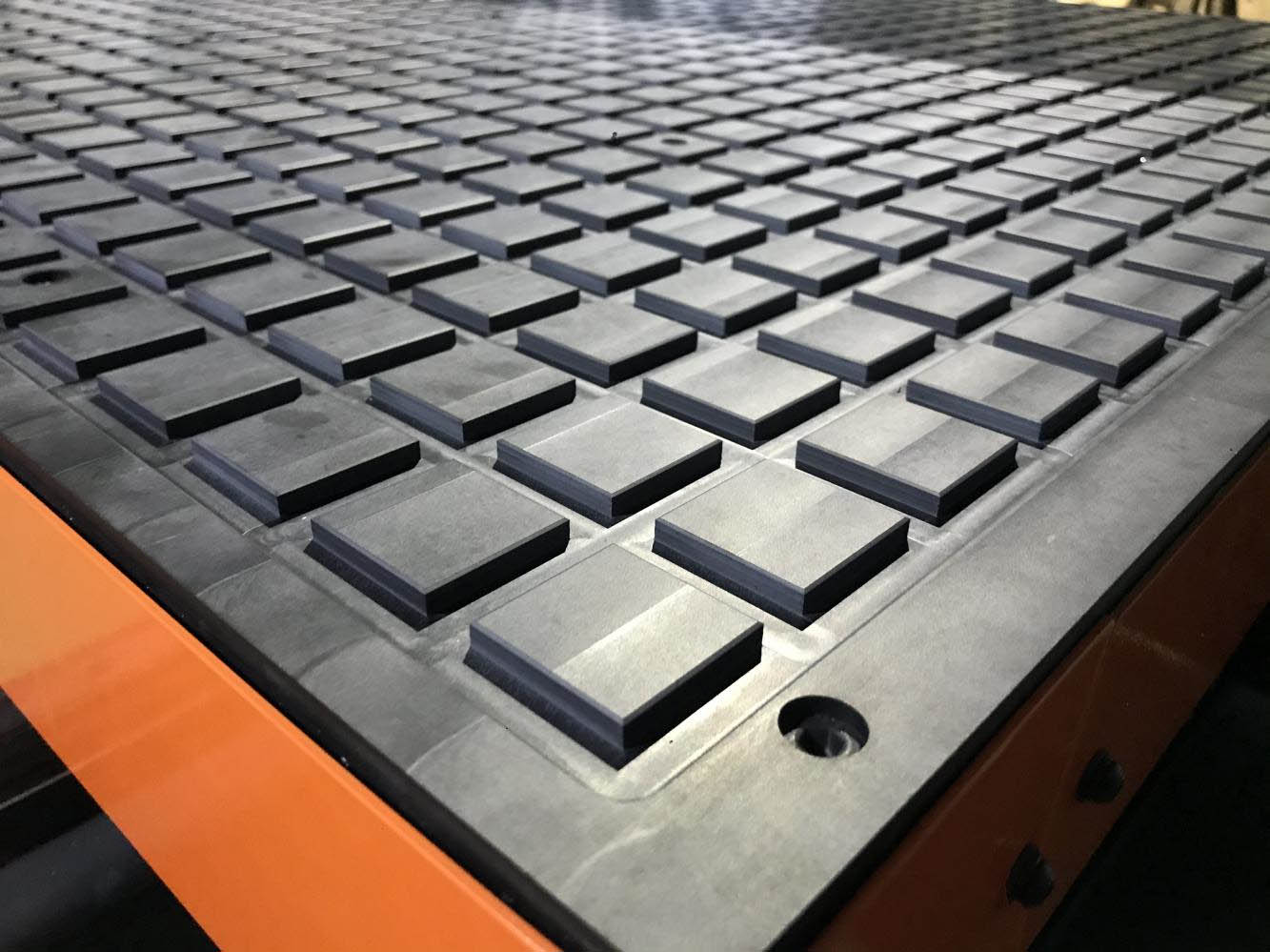

  Vacuum adsorption table, fast clamping.

Machine configuration list

NO

content



specification

Remarks

1

Processing range

X axis processing range

1300mm



Y axis processing range

2500mm



Z axis processing range

60mm





2

Machine parameter index



X, Y, Z axis motion positioning accuracy

0.05mm/300mm



X, Y, Z repeat positioning accuracy

0.05mm



Maximum displacement speed

15m/min



Maximum processing speed

10m/min


Total machine weight About 1500KG

Machine working voltage

AC380V/50HZ/3PH



3

Workbench

Phenolic Panel Workbench

Vacuum adsorption work surface



Workbench load

200KG



4

CNC system Xingduwei professional CNC system handle

5

Tool change system

Manual tool change

808D or higher


6

motor

X axis drive motor

Servo drive

Resay

Y axis drive motor

Servo drive

Resay

Z axis drive motor

Servo drive

Resay







7

Electric spindle (frequency conversion)

Spindle

Wind cooling



Spindle speed

18000RPM



Spindle power

4.5KW



Spindle taper





Spindle dynamic balance level

G2.5



Frequency converter

Ivnt



8

guide

X rail

Square rail (20mm)

TBI

Y axis guide

Square rail (25mm)

TBI

Z axis guide

Square rail (20mm)

TBI

9

transmission

X axis transmission

Helical rack



Y axis transmission

Helical rack



Z axis transmission

Ball screw rod

TBI

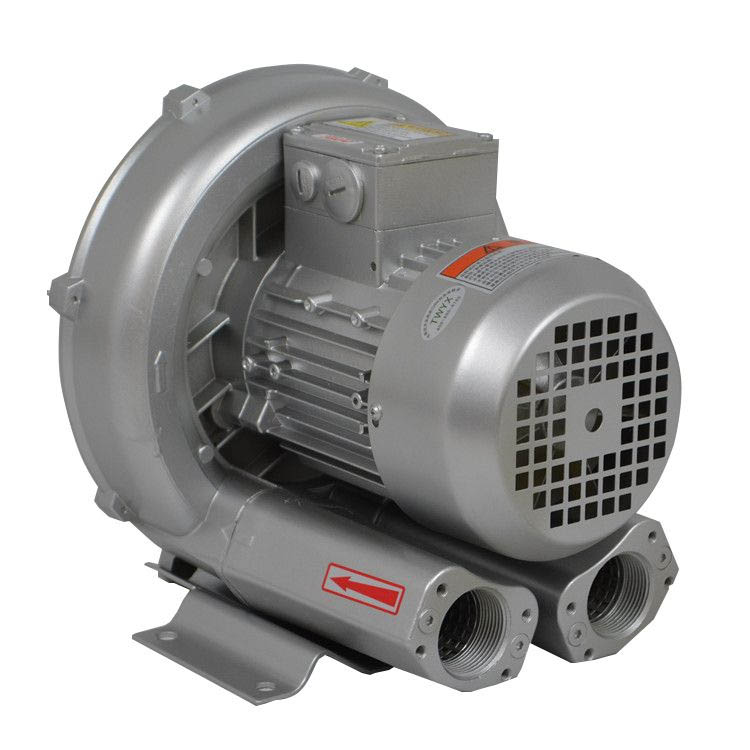

10 Vacuum pump 5.5KW air pump One
11 Wow ER25 (Ø3.175, Ø4, Ø6) one of each
12 Single-edged tool Ø3.175, Ø4, Ø6 One each
