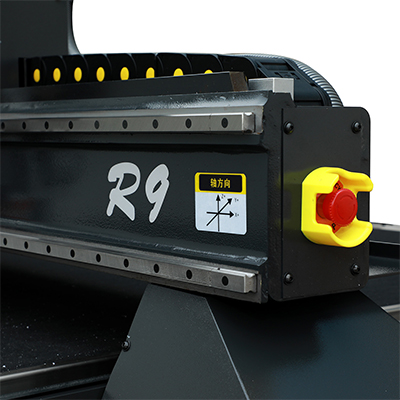

Product Name:R9 CNC engraving machine

Category:R series

Abstract:
  • Product details
  • Function
  • Accessories
  • Other
Mechanical specifications
  Model: R9
  Working voltage: AC380V / 50HZ / 3PH
  Machinable size: 1300mm * 2500mm * 60mm
  distance from beam to table surface: 150mm
  Z-axis stroke: 160mm
  Maximum processing speed: 30m/min (tool coordination is required for maximum cutting)
  Maximum idle movement Speed: 60m/min
  Repeatable positioning accuracy: +/-0.05mm
  Drive mode: X and Y axis are driven by high-precision helical gear rack, and Z-axis is driven by high-precision ball screw.
       The Oscillating knife can be used for cutting leather、PU、PVC、KT board、corrugated paper.
Machine configuration list

NO

content



specification

Remarks

1

Processing range

X axis processing range

1300mm



Y axis processing range

2500mm



Z axis processing range

60mm





2

Machine parameter index



X, Y, Z axis motion positioning accuracy

0.05mm/300mm



X, Y, Z repeat positioning accuracy

0.05mm



Maximum displacement speed

60m/min



Maximum processing speed

30m/min


Total machine weight About 1500KG

Machine working voltage

AC380V/50HZ/3PH



3

Workbench

Phenolic Panel Workbench

Four- zone vacuum adsorption table



Workbench load

300KG



4

CNC system Mintech professional CNC system handle

5

Tool change system

Manual




6

motor

X axis drive motor

Servo drive

Resay

Y axis drive motor

Servo drive

Resay

Z axis drive motor

Servo drive

Resay







7

Electric spindle (frequency conversion)

Spindle

Water cooling



Spindle speed

60000RPM



Spindle power

1.6KW



Spindle taper

Ø3-Ø6



Spindle dynamic balance level

G2.5



Frequency converter

Ivnt



8

guide

X rail

Square rail (20mm)

TBI

Y axis guide

Square rail (25mm)

TBI

Z axis guide

Square rail (20mm)

TBI

9

transmission

X axis transmission

Helical rack + reducer



Y axis transmission

Helical rack + reducer



Z axis transmission

Ball screw rod

TBI
10 Oscillating knife   Invt motor18000RPM Tool and taper
can be changed
