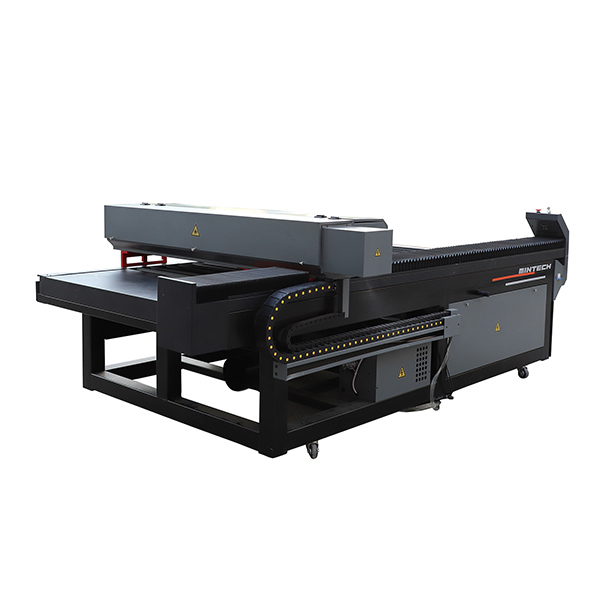

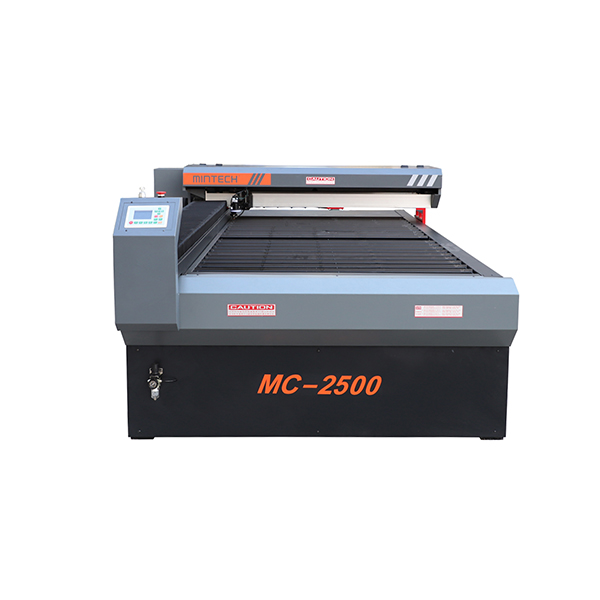

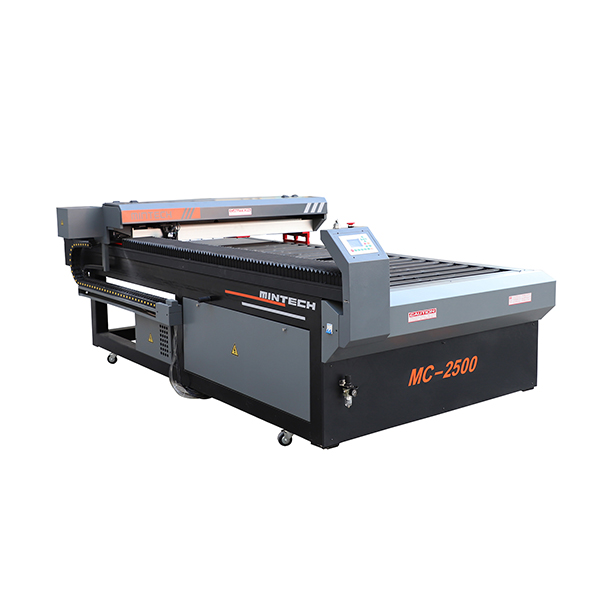

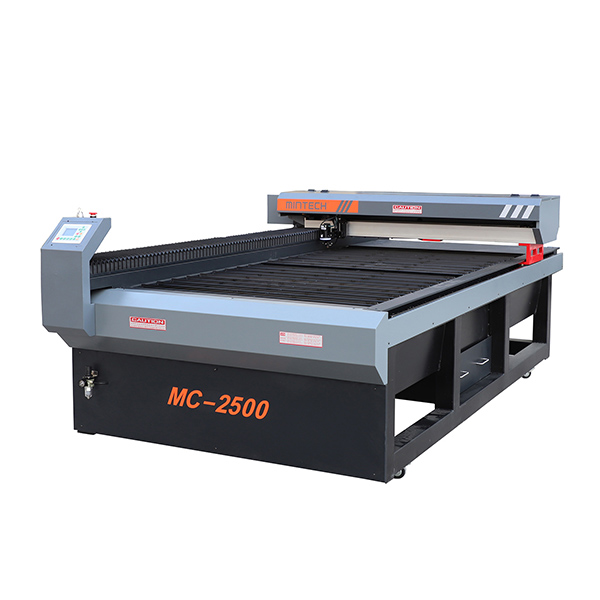

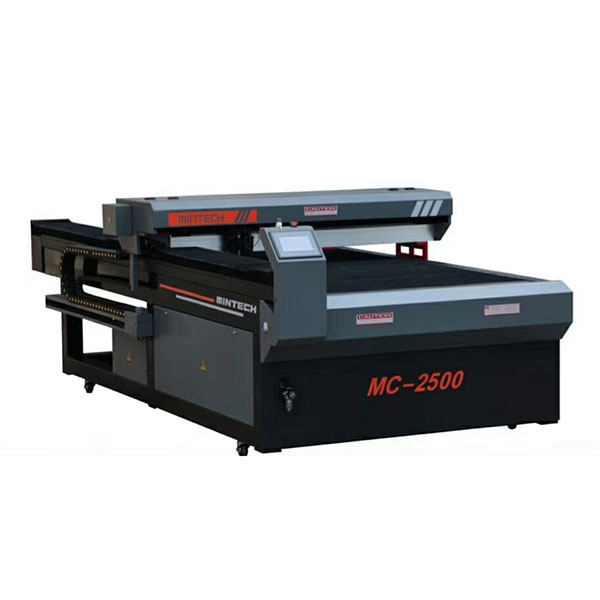

Product Name:MC-2500 Acrylic laser cutting machine

Category:MC series

Abstract:
  • Product details
  • Function
  • Accessories
  • Other
Mintech MC-2500 Acrylic Laser Cutting Machine Configuration List (Chinese):
Configuration name description Remarks
Laser 150W CO2 Glass tube (optional RF)
Dimensions 3600×1900×1300mm
Processing stroke X: 1250, Y: 2500mm Bed aging, high precision machining center processing
Free speed 20m/min Fastest
X/Y axis positioning accuracy ±0.05 Mm/m (mm/m)
X/Y axis repeat positioning accuracy ±0.05 Mm
Acrylic maximum cutting thickness 30mm Perfect cutting
Steel plate maximum cutting thickness 2mm Such as matching
Cutting head Lens fast precision cutting head Independent research and development
Mechanical transmission system Ball screw for X/Y axis Taiwan import
X/Y/Z uses TBI rail Taiwan import
Dedicated cooling system Temperature control accuracy of ±0.5 °C Special domain CW-6100
sport control Offline control
server Driver MITSUBISHI Mitsubishi Japan
Control System High resolution capacitive touch screen FLEXEM
Focusing lens Standard 2 sets
Red dot alignment Standard Optional
Fan control Touch screen Self-configuration
Fan   Included
Power supply requirements 220V10A
Gas supply requirement 0.6Mpa
Net weight of machine tool 1000Kg
