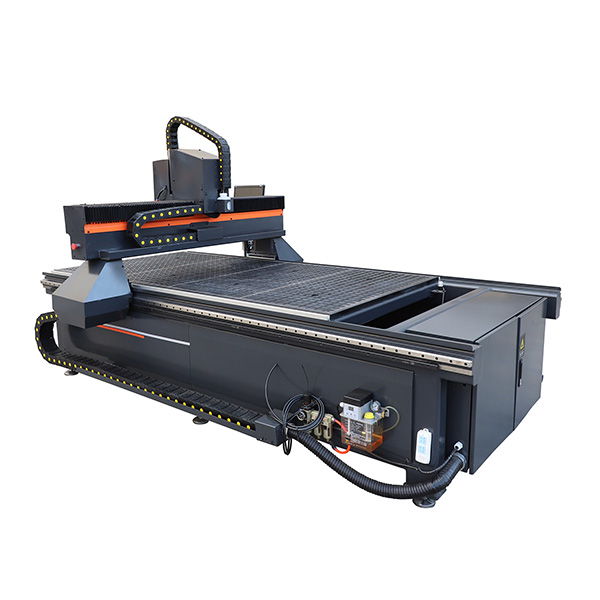

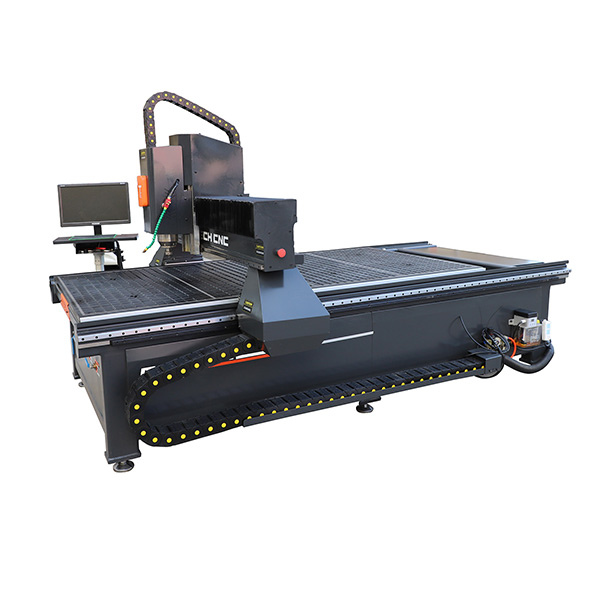

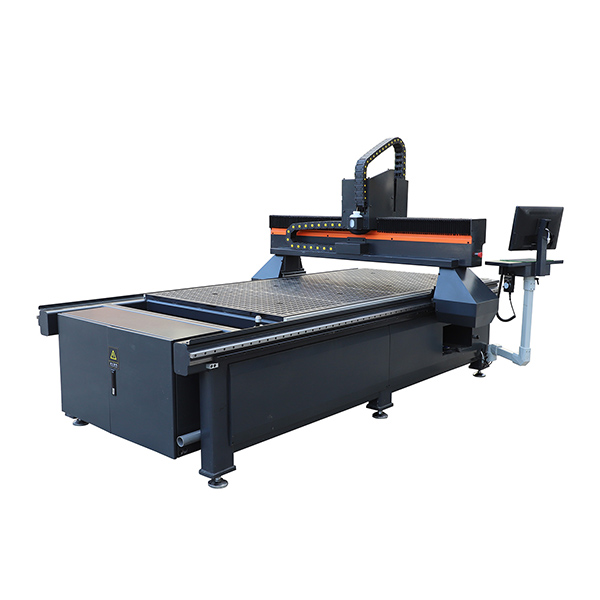

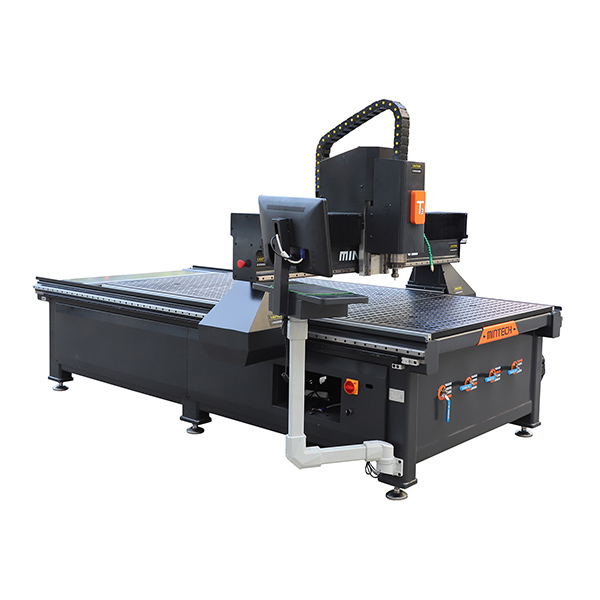

Product Name: T3 CNC engraving machine

Category:T series

Abstract:
  • Product details
  • Function
  • Accessories
  • Other
Mechanical specifications
  Model: T3
  Working voltage: AC380V/50HZ/3PH
  Machinable size: 1270mm*2540mm*60mm
  Beam to work surface distance: 200mm
  Z-axis stroke: 150mm
  Maximum processing speed: 10m/min (maximum cutting requires tool coordination)
  Maximum air movement Speed: 15m/min
  Repeat positioning accuracy: +/-0.05mm
  Drive mode: X, Y axis adopts helical gear rack drive; Z axis adopts high precision ball screw drive.
Performance characteristics
  The T3 CNC machining center adopts the gantry structure, the beam is fixed, and the movement of the table is driven. The optimized design of the gantry and the beam is reliably connected with the worktable to form a frame structure with good rigidity and reliability, and a heavy-duty welded structure. Finite element design calculations to ensure optimum strength and rigidity.
  T3 series gantry machining center, more than 15 years of industry application, industry-leading design, excellent performance and reliability.
  Using high-quality components to use the machine tool can maintain high precision for a long time.
  The machine components are FEM (Finite Element Analysis) and are uniquely designed to reduce vibration.
  Safety Assurance
  - The machine tool is designed according to the American AMT mechanical manufacturing standards.
  -- Electrical standards are designed using EMC electrical standards.
  -- All moving parts have safe and reliable protection.
  -- Operational status monitoring.
  --X, Y and Z three-axis drive systems are equipped with a variety of safety protection controls, such as electrical control limits, software limits and mechanical limits to ensure the safety of machine work.
Machine configuration list

NO

content



specification

Remarks

1

Processing range

X-axis machining range

1270mm



Y-axis machining range

2540mm



Z-axis machining range

60mm



2



Machine parameter index



X, Y, Z axis motion positioning accuracy

0.05mm



X, Y, Z repeat positioning accuracy

0.05mm



Maximum displacement speed

15 m / min



Maximum processing speed

10 m / min



Total machine weight

About 1500KG



Machine operating voltage

AC380V/50HZ/3PH



3

Workbench

Phenolic panel workbench

Four-zone vacuum adsorption table



Workbench load

200KG



4

CNC system

Weihong professional CNC system

PM95A-LD3L



5

Tool change system

Manual tool change



6

Drive power (AC servo)

X-axis drive motor

Domestic servo drive



Y-axis drive motor

Domestic servo drive



Z-axis drive motor

Domestic servo drive




7

Electric spindle (frequency conversion)

Spindle

Water cooling



Spindle speed

24000RPM



Spindle power

5.5KW



Spindle taper



Spindle dynamic balance level

G2.5



Frequency converter

Invt



8

guide

X rail guide

Square rail (20mm)



Y-axis guide

Square rail (25mm)



Z-axis guide

Square rail (20mm)



9

transmission

X-axis drive

Helical rack



Y-axis drive

Helical rack



Z-axis drive

Ball screw rod



10

Vacuum pump

5.5KW air pump

One
