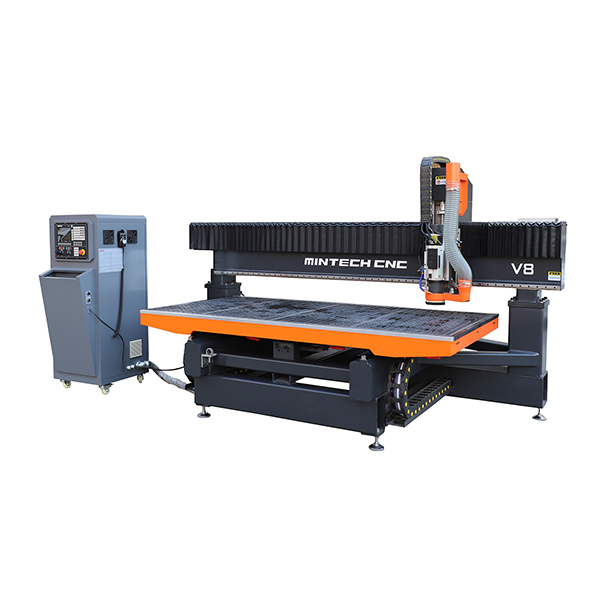

Product Name: V8 CNC machining center

Category:V series

Abstract:
  • Product details
  • Function
  • Accessories
  • Other
Mechanical specifications
  Model: V8
  Working voltage: AC380V/50HZ/3PH
  Machinable size: 1270mm*2540mm*100mm
  Beam to work surface distance: 200mm
  Z-axis travel: 450mm
  Maximum processing speed: 20m/min (maximum cutting requires tool coordination)
  Maximum air movement Speed: 30m/min
  Repeat positioning accuracy: +/-0.05mm
  Drive mode: X, Y, Z axes are driven by high precision ball screw.
Performance characteristics

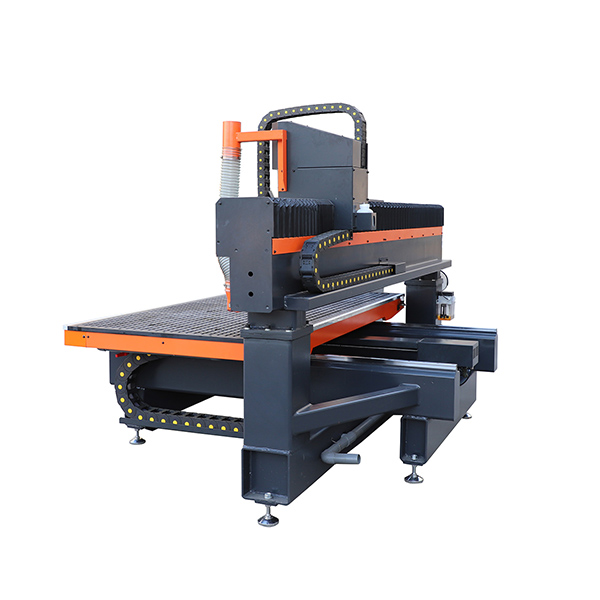

  The V8 CNC machining center adopts the gantry structure, the beam is fixed, and the movement of the table is moved. The gantry and beam with optimized design are connected with the worktable reliably, forming a frame structure with good rigidity and reliability, and a heavy-duty welded structure. Finite element design calculations to ensure optimum strength and rigidity.
  V8 series gantry machining center, more than 15 years of industry application, industry-leading design, excellent performance and reliability.
  Using high-quality components to use the machine tool can maintain high precision for a long time.
  The machine components are FEM (Finite Element Analysis) and are uniquely designed to reduce vibration.
  Safety Assurance
  - The machine tool is designed according to the American AMT mechanical manufacturing standards.
  -- Electrical standards are designed using EMC electrical standards.
  -- All moving parts have safe and reliable protection.
  -- Operational status monitoring.
  --X, Y and Z three-axis drive systems are equipped with a variety of safety protection controls, such as electrical control limits, software limits and mechanical limits to ensure the safety of machine work.
  After-sales service
   --Dongguan Citizen Electronics Co., Ltd. Online Service System
   --Dongguan Citizen Electronics Co., Ltd. Technical Support
  When the customer requests service, the company will respond within 24 hours of receiving the customer request. If necessary, arrange technicians to resolve the equipment failure within 24 hours.
Machine configuration list

NO

content



specification

Remarks

1

Processing range

X-axis machining range

1270mm



Y-axis machining range

2570mm



Z-axis machining range

200mm



2



Machine parameter index



X, Y, Z axis motion positioning accuracy

0.05mm

The above position parameters are referenced to the international ISO230-2 and are calibrated using a RENISHAW laser interferometer. Note (1)

X, Y, Z repeat positioning accuracy

0.05mm



Maximum displacement speed

30 m / min



Maximum processing speed

20 m / min



Total machine weight

About 2500KG



Machine operating voltage

AC380V/50HZ/3PH



3

Workbench

Phenolic panel workbench

Vacuum adsorption table



Workbench load

500KG



4

CNC system

Weihong professional CNC system

NK280



5

Tool change system

Disc type

8 knife position

Taiwan

6

Drive power (AC servo)

X-axis drive motor

850W

Japan

Y-axis drive motor

850W

Japan

Z-axis drive motor

850W

Japan

Voltage

AC380 / 3PH



7

Electric spindle (frequency conversion)

Spindle

Air cooled



Spindle speed

4000-24000RPM



Spindle power

9KW



Spindle taper

ISO30



Spindle dynamic balance level

G2.5



Frequency converter

VFD



8

guide

X rail guide

Square rail (25mm)



Y-axis guide

Square rail (35mm)



Z-axis guide

Square rail (25mm)



9

transmission

X-axis drive

Ball screw rod



Y-axis drive

Ball screw rod



Z-axis drive

Ball screw rod



Note (1):

Positioning accuracy detection method: The measurement data is sorted by mathematical statistics. That is, any number of positioning points (generally 5 to 15) are selected along a certain measurement axis parallel to the coordinate axis, and then multiple positioning (usually 5 to 13 times) is repeated for each positioning point. The locating point can be approached in one direction, or it can be approached from two directions, and then the measurement data is statistically processed to obtain an arithmetic mean value. Further, the average value deviation, the standard deviation, and the dispersion degree were determined. The dispersion represents the repeating positioning accuracy, which together with the average deviation constitutes the positioning accuracy, and the sum of the two is the maximum positioning deviation that can be achieved when positioning between any two points.
