Model

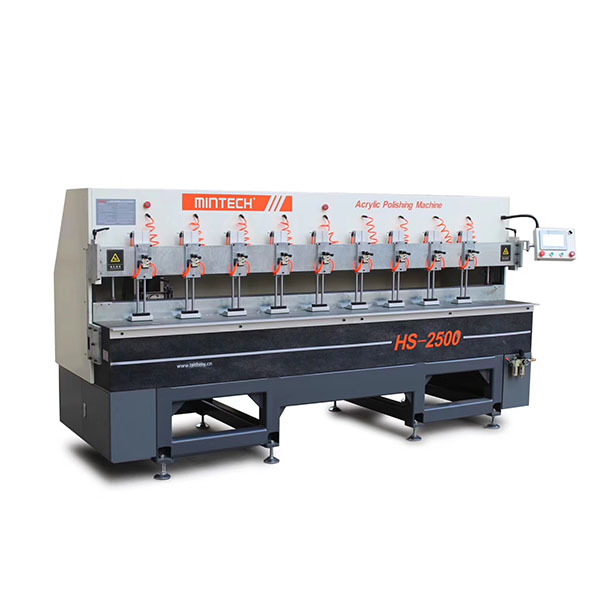

HS-2500

Remarks

Machine size

3242mm×1138mm×1720mm

Main structure

Granite

Work area

L0-2500mm or Unlimited

Working thickness

0~110mm

Working depth

0-2mm

Can adjust

Spindle speed

7000~9000RPM

Can adjust

Work speed

0~2000mm/min

Can adjust

Bevel polishing

0°~60°

Customizable

Cutter feed method

Cylinder propulsion

parameter adjustment

manual adjustment

Machining model

Spindle feed

Speed regulation

Frequency conversion

Program control

PLC

Machine power

3KW AC 50~60hz，3ph 380V

Compressed air

0.6~0.8Mpa

Machine weight

3500Kg
