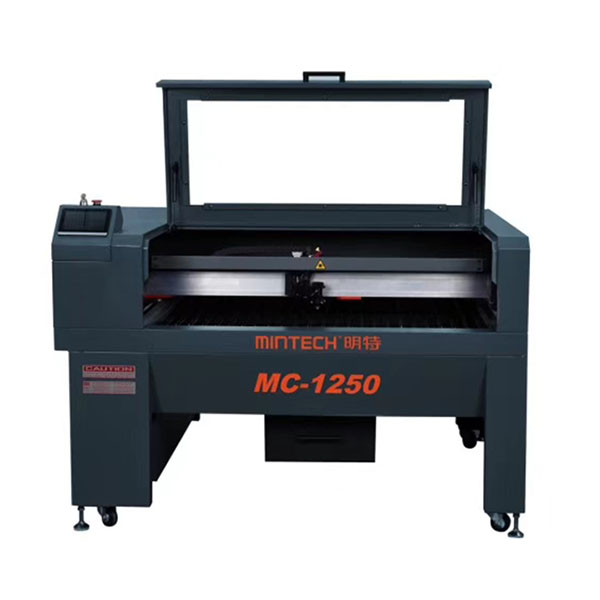

description

Remarks

Laser tube

130KW CO2

Glass tube（Optional RF）

Dimensions

1600*1750*1200mm

Working area

X：1250,Y:900mm

High precision machining center processing

Idle moving speed

20m/min

Fastest

X/Y axis Repeatability

±0.05

mm/m

X/Y axis Repeatability

±0.05

mm

Acrylic maximum cutting thickness

30mm

Perfect cutting

Steel plate maximum cutting thickness

2mm

If optional

Cutting head

Lens fast precision cutting head

Independent research and development

Mechanical transmission system

X/Y axis ball screw

Taiwan import

X/Y/Z TBI linear guide

Taiwan import

Dedicated cooling system

Precision:±0.5ºC

 S&A CW=6100

control system

Off-line control

Servo motor

MITSUBISHI

Japan

Touch screen system

High definition touch screen

FLEXEM

Focusing lens

Standard 2 sets

Red dot alignment

Standard

Optional

Fan control

Touch screen one button control

Self-configuration

Fan

Included

Power supply

220V10A

Air supply

0.6Mpa

Machine weight

400Kg
