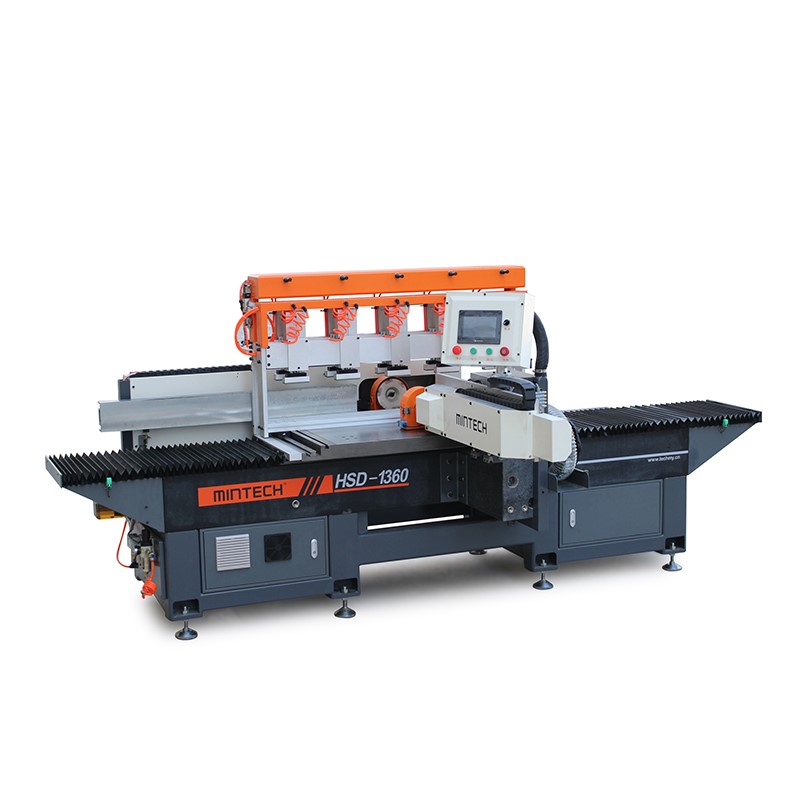

Product Name:HSD-1360 acrylic double-sided high-speed polishing machine

Category:HSD series

Abstract:
  • Product details
  • Function
  • Accessories
  • Other

Model

HSD-1360

Remarks

Machine size

3525×2000×1530mm



Main structure

Granite



Work area

L0-1300mm or Unlimited



Working thickness

0~110mm



Working depth

0-2mm

Can adjust

Spindle speed

7000~9000RPM

Can adjust

Work speed

0~2000mm/min

Can adjust

Bevel polishing

0°~60°

Customizable

Cutter feed method

Cylinder propulsion



parameter adjustment

manual adjustment



Machining model

Spindle feed



Speed regulation

Frequency conversion



Program control

PLC



Machine power

5.5KW AC 50~60hz3ph 380V



Compressed air

0.6~0.8Mpa



Machine weight

3500Kg
